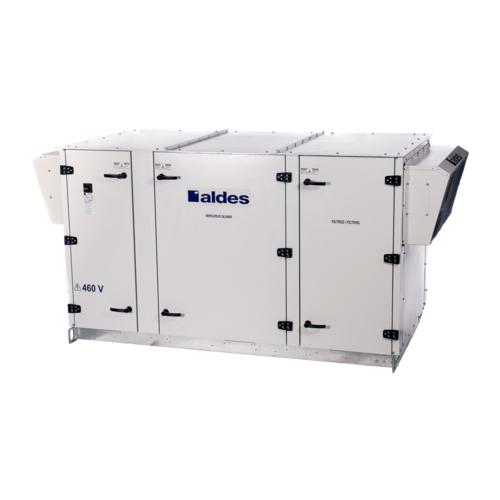

InspirAIR® P_30
Commercial
InspirAIR® P_30
Commercial
Commercial heat and energy recovery ventilators offering a range of 1000 to 3000 CFM with multiple options.
InspirAIR® P_30
The InspirAIR® Commercial P30 series of energy and heat recovery ventilators offers a wide range of options, all in robust, standardized sizes. Designed for indoor and rooftop applications, it offers 1000 to 3000 CFM. Choose between a fixed plate heat and energy recovery core or an enthalpy wheel for maximum efficiency. Add heating coils, EC motors, and an advanced BacNET controller to get the most out of your investment. InspirAIR® Commercial also offers an optional bypass damper for free cooling operation, without the need to connect additional ducts or components to the outside of the units. InspirAIR® Commercial was designed with the construction industry in mind: it is economical but offers a wide range of options to suit most building types and design conditions. And with Aldes North America's excellent service and delivery times, you can't go wrong with InspirAIR® Commercial!
The + products
- Ventilation airflow from 1000 to 3000 CFM,
- Up to 75% total plate efficiency,
- Up to 85% total wheel efficiency,
- AHRI certified,
- EC motors available for all models and sizes,
- Indoor and outdoor applications,
- Digital controls (BACnet Ready),
- Double-wall construction (standard),
- Frost control,
- Post-heating options,
- Free cooling (optional),
- Programmable timer (optional),
- MERV 8 or MERV13 filter (optional),
Products and accessories references
-
InspirAIR® Commercial PA30PA30 -
InspirAIR® Commercial PE30PE30 -
InspirAIR® Commercial PH30PH30
-
InspirAIR® Commercial PW30PW30
Documents
Showing 1 - y of
document
-
Spec & technical data PH30Specification Sheet
-
Spec & technical data PE30Specification Sheet
-
Spec & technical data PA30Specification Sheet
-
Spec & technical data PW30Specification Sheet
-
Brochure InspirAIR® CommercialBrochure4 MB
-
Installation Manual InspirAIR® CommercialBrochure2 MB
