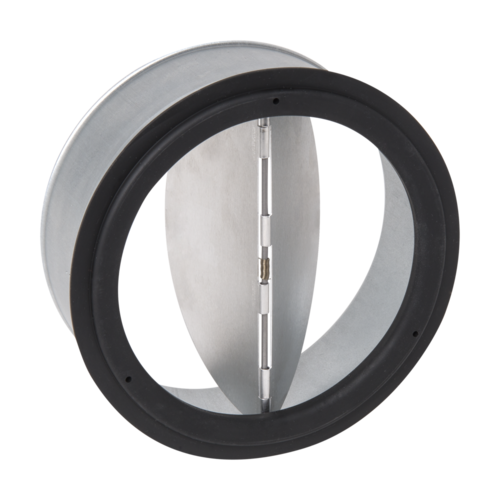

Spring-Loaded Backdraft Damper
Airflow regulator
Spring-Loaded Backdraft Damper
Airflow regulator
Spring-loaded backdraft dampers fit directly into the duct, providing quick and easy installation.
Spring-Loaded Backdraft Damper
The damper features a durable 20-gauge galvanized steel housing and aluminum spring-loaded butterfly blades. When closed, the damper seals tightly against an EPDM rubber gasket, ensuring minimal air leakage. The gasket is designed to perform reliably in temperatures ranging from -30 °C et 82 °C.
The damper begins to open with airflows between 0.04 and 0.08 inches water gauge (w.g.) and can be installed in any position. For the 14-inch and 16-inch models, spring tension adjustment is required when installed vertically with airflow directed downward.
Installation is simple—the entire assembly inserts directly into the duct. An exterior rubber seal (for 4”, 5”, and 6” models) or foam gaskets (for 7” and larger models) ensure a tight, secure fit against the interior surface of the duct.
The damper begins to open with airflows between 0.04 and 0.08 inches water gauge (w.g.) and can be installed in any position. For the 14-inch and 16-inch models, spring tension adjustment is required when installed vertically with airflow directed downward.
Installation is simple—the entire assembly inserts directly into the duct. An exterior rubber seal (for 4”, 5”, and 6” models) or foam gaskets (for 7” and larger models) ensure a tight, secure fit against the interior surface of the duct.
The + products
- 20-gauge galvanized steel housing,
- Spring-loaded aluminum butterfly blades,
- EDPM rubber damper seals in closed position to minimize leakage,
- Seal designed for use at temperatures between -30°C and 82°C,
- Requires air flow rates of 0.04 to 0.08 inches of water column to begin opening.
Products and accessories references
-
Backdraft damper Ø 12511094682 -
Backdraft damper Ø 15011094683
-
Backdraft damper Ø 16011094684
-
Backdraft damper Ø 20011094685
-
Backdraft damper Ø 25011094686
-
Backdraft damper Ø 31511094687
-
Backdraft damper Ø 35511094688
-
Backdraft damper Ø 40011094689
-
Backdraft damper Ø 10011094681
